wiki:software:beuthbot:berichte:ws2020:alt:geplanterstand

Dies ist eine alte Version des Dokuments!

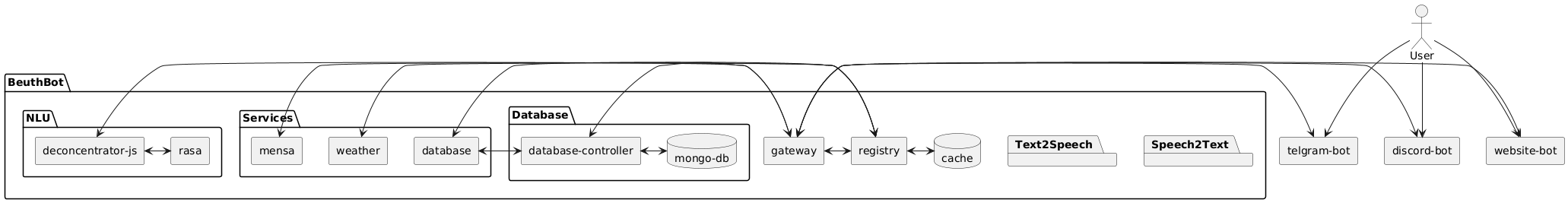

@startuml
actor "User" as U
rectangle "telgram-bot" as TGB
rectangle "discord-bot" as DCB
rectangle "website-bot" as WSB
package "BeuthBot" {
rectangle "gateway" as GW
rectangle "registry" as RE
database "cache" as CA
package "NLU" {
rectangle "deconcentrator-js" as DC
rectangle "rasa" as RA
}
package "Services" {
rectangle "weather" as WS
rectangle "mensa" as MS
rectangle "database" as DBMS
}
package "Database" {
rectangle "database-controller" as DBC
database "mongo-db" as MDB
}
package "Text2Speech" {
rectangle "database-controller" as DBC
database "mongo-db" as MDB
}
package "Speech2Text" {
rectangle "database-controller" as DBC
}
}

U -down-> TGB
U -down-> DCB
U -down-> WSB

GW <-> TGB
GW <-> DCB
GW <-> WSB

GW <-> DC

GW <-> RE

DC <-> RA

DBC <-> MDB

GW <-> DBC

RE <-> CA

RE <-> MS

RE <-> WS

DBMS <-> RE

DBMS <-> DBC
@enduml
